Overview
How to configure a new IMAP email account in Outlook 2016
Procedures
To configure Outlook 2016 to use IMAP to connect to your RPI email:
1.Start Microsoft Outlook 2016. A Welcome to Outlook 2016 window should appear. Click Next.
[Outlook welcome screen and add an Email Account screen]
2. In the Add an Email Account window that appears, select the Yes option, and then click Next.
If the Welcome to Outlook 2016 Screen does not appear:
1. Click File, then click Account Settings, click Account Settings again, and then click New…
[Account settings button selecting Account Settings and the word New selected]
2. At the “Auto Account Setup” screen select the Manual setup or additional server types option and then click Next.
[Add Account dialog box with manual setup or additional server types selected and the word next selected]
3. Select the POP or IMAP option in the resulting window and then click Next.
[Add Account dialog box with Pop or IMAP selected and the word next selected]
4. Fill in the User Information, Server Information, and Logon Information:
User information: Your name: enter your RCS userid and your RPI email address.
Server Information: Account type: IMAP; Incoming and Outgoing mail server are both: mail.rpi.edu
Logon Information: enter your RCS userid and RCS password.. Check Remember password if you wish. Check the box for Require login using Secure Password Authentication (SPA). Click More Settings.
[Add Account dialog box showing POP and IMAP Account Settings for user information, server information and Logon information. Also "Require logon using Secure Password Authentication (SPA)" selected and More settings button selected.]
7. An Internet E-mail Settings window will appear. Click on the Outgoing Server tab, and then select the My outgoing server (SMTP) requires authentication and Use Same settings as my incoming mail server options.
[My outgoing server (SMTP) requires authentication selected along with Use same settings as my incoming mail server option selected]

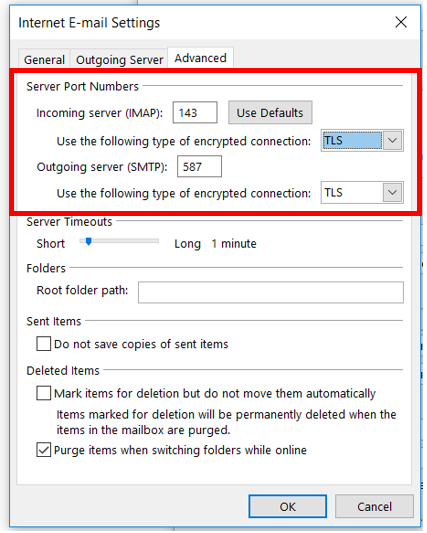

8. Click the Advanced tab in the same window, and change the following settings, as shown below:
Incoming server (IMAP): 143
Use the following type of encrypted connection: TLS
Outgoing server (SMTP): 587
Use the following type of encrypted connection: TLS
[Internet E-mail Settings dialog box with Server Port Number for incoming and outgoing server options selected]
9. Click OK, then click Next.
NOTE: At times the above settings do not stick and you will need to go back in and check and possibly redo the port settings for the incoming and outgoing servers.
The Test Account Settings windows will appear and as long as successful click Close.
If Send test message fails, go back to Step 8 to see that Outgoing Server Information is correct.
[Test Account Settings dialog box showing that all the tests were completed successfully for the mail servers]
10. When the Add Account screen appears, click Finish.
